Zirconia (YSZ) Grinding Media

(Balls & Cylinders)

An Efficient, Longer-Lasting & Virtually Contamination-Free Solution for Ceramic Grinding & Milling

Zirconia (YSZ) grinding media is the most durable and efficient media for ball milling and attrition milling of ceramic materials.   Zirconia grinding media provides a virtually contamination-free ball milling solution for a variety of industries.

Products & Pricing

Spherical Zirconia (YsZ) Grinding Media

Product #

Media Diameter

Quantity and Price

4039GM-S003

0.3 mm

2 kg ON SALE

$ 119.40/kg

5 kg ON SALE

$ 112.70/kg

10 kg ON SALE

$ 94.10/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S005

0.5 mm

2 kg ON SALE

$ 78.40/kg

5 kg ON SALE

$ 72.50/kg

10 kg ON SALE

$ 64.30/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S008

0.8 mm

2 kg

$ 87.20/kg

5 kg

$ 79.40/kg

10 kg

$ 68.50/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S010

1 mm

2 kg

$ 84.70/kg

5 kg

$ 76.20/kg

10 kg

$ 65.40/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S015

1.5 mm

5 kg

$ 73.90/kg

10 kg

$ 64.50/kg

50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S020

2 mm

2 kg

$ 75.10/kg

5 kg

$ 68.80/kg

10 kg

$ 62.20/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S030

3 mm (1/8”)

2 kg

$ 73.60/kg

5 kg

$ 66.70/kg

10 kg

$ 59.80/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S050

5 mm

2 kg  ON SALE

$ 68.40/kg

5 kg  ON SALE

$ 62.30/kg

10 kg  ON SALE

$ 59.60/kg

20 kg  ON SALE

$ 54.90/kg

50-1,000 kg

Contact us for a quote

4039GM-S065

6.5 mm (1/4”)

2 kg

$ 71.70/kg

5 kg

$ 65.80/kg

10 kg

$ 60.40/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S100

10 mm (3/8”)

2 kg

$ 70.60/kg

5 kg

$ 65.50/kg

10 kg

$ 59.20/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S120

12 mm (1/2”)

2 kg  ON SALE

$ 68.40/kg

5 kg  ON SALE

$ 62.30/kg

10 kg ON SALE

$ 59.60/kg

20 kg ON SALE

Contact us for a quote

50-1,000 kg

Contact us for a quote

4039GM-S150

15 mm (5/8”)

2 kg

$ 73.50/kg

5 kg

$ 68.60/kg

10 kg

$ 62.80/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S200

20 mm (3/4”)

2 kg

$ 76.90/kg

5 kg

$ 72.10/kg

10 kg

$ 64.40/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S250

25 mm (1’’)

2 kg

$ 76.90/kg

5 kg

$ 72.50/kg

10 kg

$ 66.30/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-S300

30 mm

2 kg

$77.20/kg

5 kg

$ 73.40/kg

10 kg

$ 67.50/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

Cylindrical Zirconia (YSZ) Grinding media

Product #

Media Dimension

Quantity and Price

4039GM-C05

5 mm in diameter

5 mm in height

2 kg

$ 87.40/kg

5 kg

$ 82.90/kg

10 kg

$ 78.70/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-C07

7.5 mm in diameter

7.5 mm in height

2 kg

$ 76.20/kg

5 kg

$ 71.10/kg

10 kg

$ 64.70/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-C10

10 mm in diameter

10 mm in height

(3/8”)

2 kg  ON SALE

$ 68.40/kg

5 kg  ON SALE

$ 62.30/kg

10 kg ON SALE

$ 59.60/kg

20 kg ON SALE

$ 54.90/kg

50-1,000 kg

Contact us for a quote

4039GM-C12

12 mm in diameter

12 mm in height

(1/2”)

2 kg

$ 71.80/kg

5 kg

$ 64.40/kg

10 kg

$ 56.10/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-C15

15 mm in diameter

15 mm in height

(5/8”)

5 kg

$ 66.40/kg

10 kg

$ 53.80/kg

20 kg

$ 49.50/kg

50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

4039GM-C20

20 mm in diameter

20 mm in height

(3/4”)

2 kg

$ 76.20/kg

5 kg

$ 71.60/kg

10 kg

$ 65.70/kg

20-50 kg

Contact us for a quote

100-1,000 kg

Contact us for a quote

Typical Properties

Composition

3 mol% yttria (Y2O3) stabilized zirconia (ZrO2)

(94.7 wt% ZrO2 + 5.3 wt% Y2O3)

Material Density

  6.0-6.05             g/cm3

Bulk Volume

0.5-1.5 mm media

  3.7-3.8               kg/1000 cc

1.5-3.0 mm media

  3.6                     kg/1000 cc

3.0-8.0 mm media

  3.5                     kg/1000 cc

8.0-10 mm media

  3.4                     kg/1000 cc

10-25 mm media

  3.2-3.3               kg/1000 cc

Hardness

  11                      GPa

Crushing Load

5 mm media

  10                      KN

6.5 mm media

  15                      KN

Fracture Toughness

  8-15                   MPa m1/2

Grain Size

<0.5                     mm

Advantages of Zirconia Grinding Media

·        Ultra low wear loss as a result of the transformation-toughening mechanism unique to the yttria stabilized zirconia (YSZ) material system.

·        Higher grinding efficiency and reduced grinding time due to zirconia’s higher density (compared with alumina and glass).

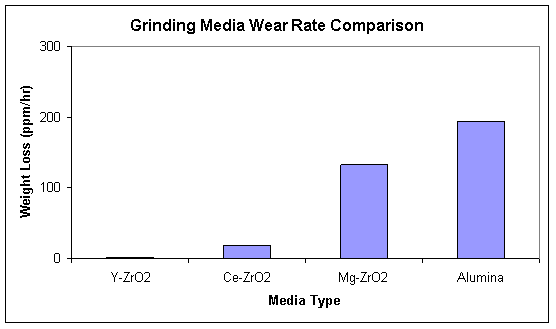

·        Most durable grinding material, reducing operational cost in the long run.  Wear rate substantially lower than Al2O3, CeO2-ZrO2, and MgO-ZrO2 grinding media.

·        Suitable for high velocity operations and wet grinding operations.

Applications of Zirconia Grinding Media

·        Iron- and chrome-based magnetic materials (for audio/video recording tapes) and other magnetic materials.

·        Electronic-grade ceramics (ferroelectric, piezoelectric, dielectric, capacitors, sensors, etc.), advanced structural ceramics, and other ceramic ingredients.

·        Nanostructured and superfine powders.

·        Toner materials for photocopiers and laser printers.

·        Inks, dyes, paint, and other pigments.

·        Pharmaceutical, food, chemical, and textile applications.

·        Lab milling operations demanding minimized contamination from milling media.

Criteria in Selecting Size of Zirconia Grinding Media

·        Larger-sized media are more efficient in breaking up large particles.

·        Smaller media are more efficient in milling smaller particles because of higher effective contact area.

·        Larger media sizes are favored in many conventional ball mills.  Smaller sizes are more appropriate for attritors.  For example, 5mm media are used in many attrition mill applications, whereas 10-15 mm may be a good start for a lab ball mill.  For small-media mills, media sizes are typically smaller than 2 mm.

·        Another important criterion in selecting media size is the gap size between stirring arms and mill walls.  Media size should be significantly smaller than the gap size to prevent jamming.
